ELECTRICAL CONNECTOR

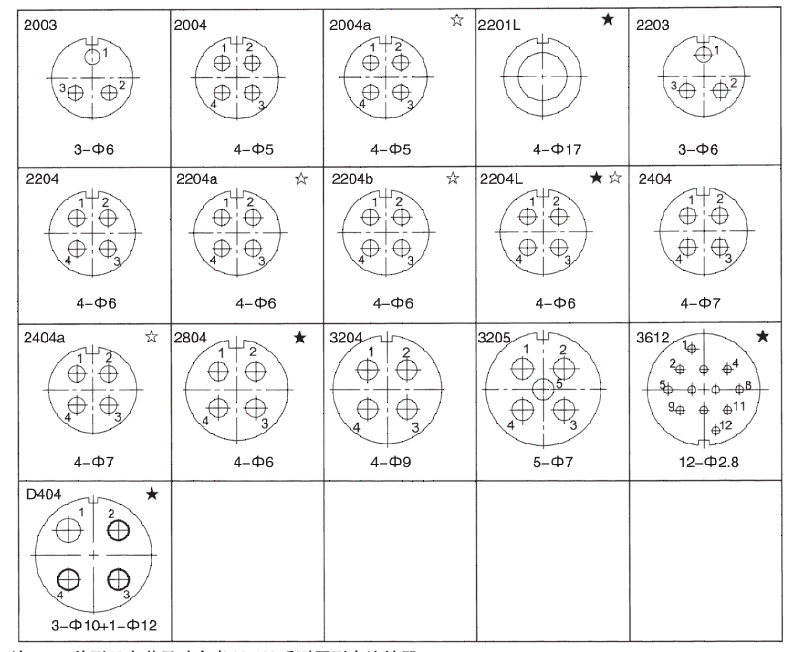

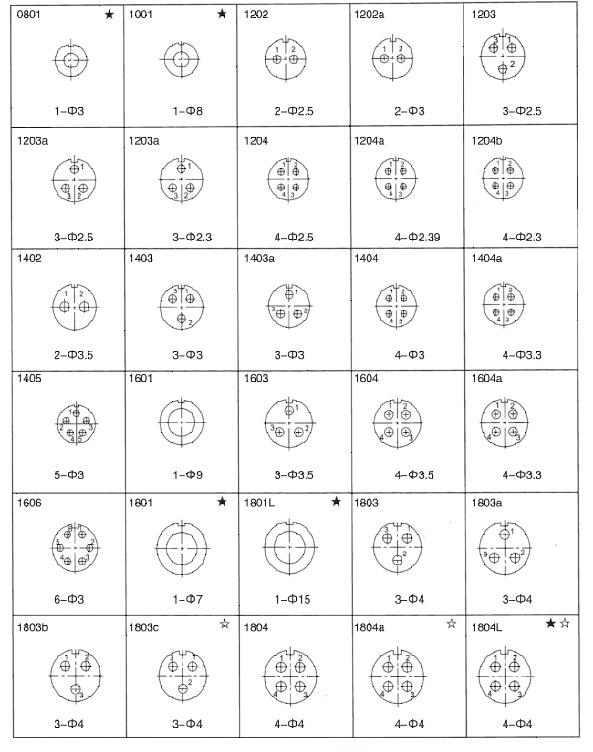

Y50DX ELECTRICAL CONNECTOR

Features：
*High current
*Meets the GJB101A -97 standard

*A buckle fast connection
*The end joint form is welding
*Jacket：Shield or No-Shield
*specialty used for High current
Main technical performance:
【Physical characteristics】
--Sinusoidal vibration：20g,10-2000Hz
--crash acceleration： 40g
--shock acceleration: 100g
--Useful life：Plug 500 times
【Environmental characteristics】

--Operating temperature：-55℃~125℃

--relative humidity: 90 % -95%，Temperature at 40 ± 2℃
--Operating pressure：101.33KPa～1.33Pa
--Sealed：≤4.6 × 10-2pa.cm3/s)

【Electrical characteristics】
——Contact resistance and rated current

Inner diameter of solder wire cup	Contact Specifications（mm）	Contact resistance (MΩ)	rated current （A）
Φ2.5	Φ2.0	≤1.5	20
Φ2.5	Φ2.5	≤1.5	25
Φ3	Φ3.0	≤1.0	40
Φ3.5	Φ3.5	≤1.0	50
Φ4.5	Φ4.0	≤1.0	60
Φ6	Φ5	≤0.7	75
Φ6.5	Φ6	≤0.7	90
Φ7.3	Φ7	≤0.5	100
Φ8.5	Φ8	≤0.5	130
Φ8	Φ9	≤0.4	150
Φ10	Φ10	≤0.4	200
Φ12	Φ12	≤0.3	250
Φ15	Φ15	≤0.3	400
Φ19	Φ17	≤0.3	600
