Weight：0.5 kg

Shipping weight of one thermal imaging camera module：0.5 kg

Net Weight (without lens)：about 6.4g

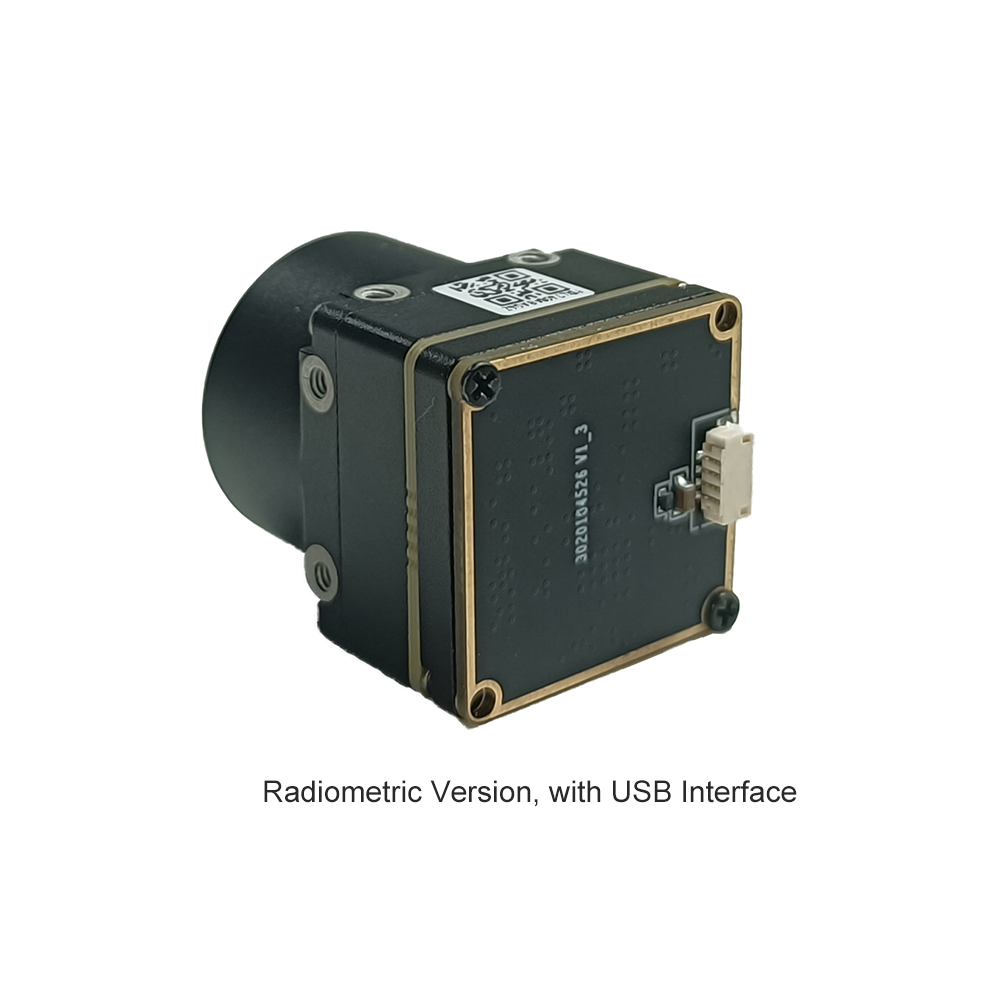

Note: Radiometric Version only has 9/13/18mm Lens

Lens：4mm, 7mm, 9mm, 13mm, 15mm, 18mm, 25mm, 35mm, 50mm, 60mm, 75mm Function Radiometric Version(25Hz), Non-radiometric version (60Hz)

Interface：USB, CVBS, MIPI

Product Introduction

1.1.  Product description

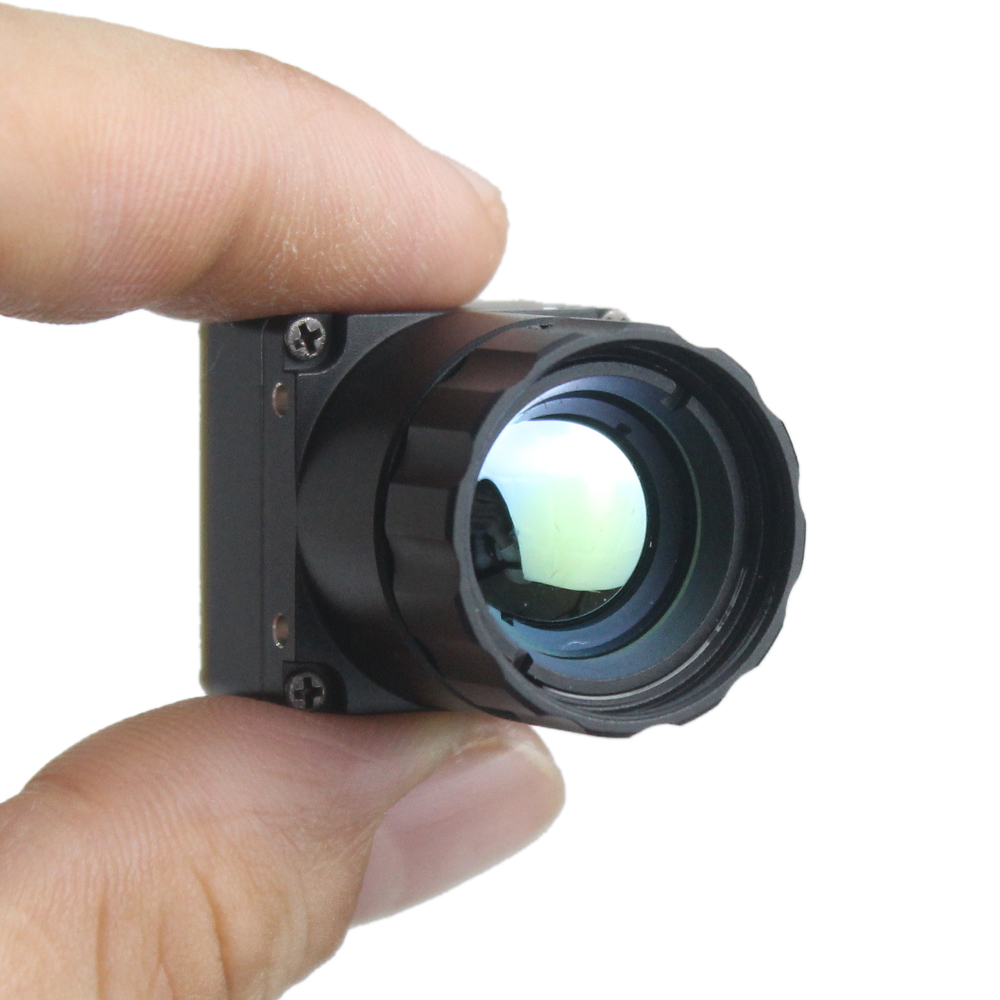

Product Parameter of Mini 640 Uncooled LWIR Thermal Camera Module:

Resolution: 640*512

Detector Frame: Radiometric Version(25Hz),Non-Radiometric Version(60Hz)

Pixel Spacing: 12um

Response Wave Band: 8~14um

NETD: <50mK@25°C,F#1.0 (<40mK optional)

Lens Type: 4/7/9/13/15/18/25/35/50/60/75mm

Thermal Palettes: White heat; Black heat;

Weight: <20 g(without lens)

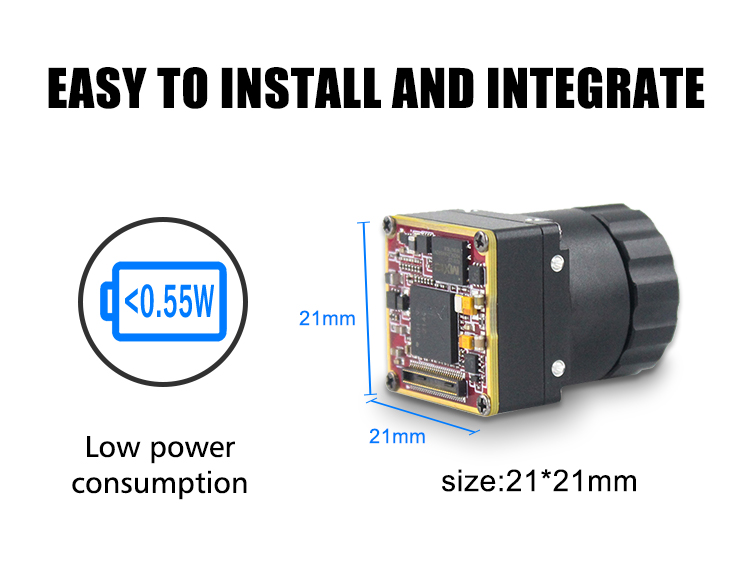

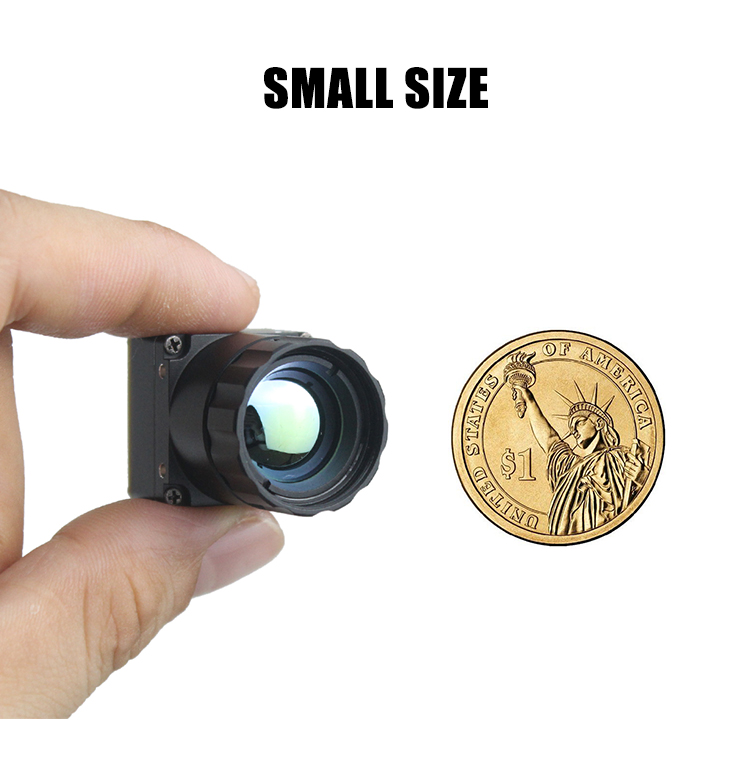

Size: 21mm*21mm(without lens)

1.2. Characteristic

Compact & Lightweight Design

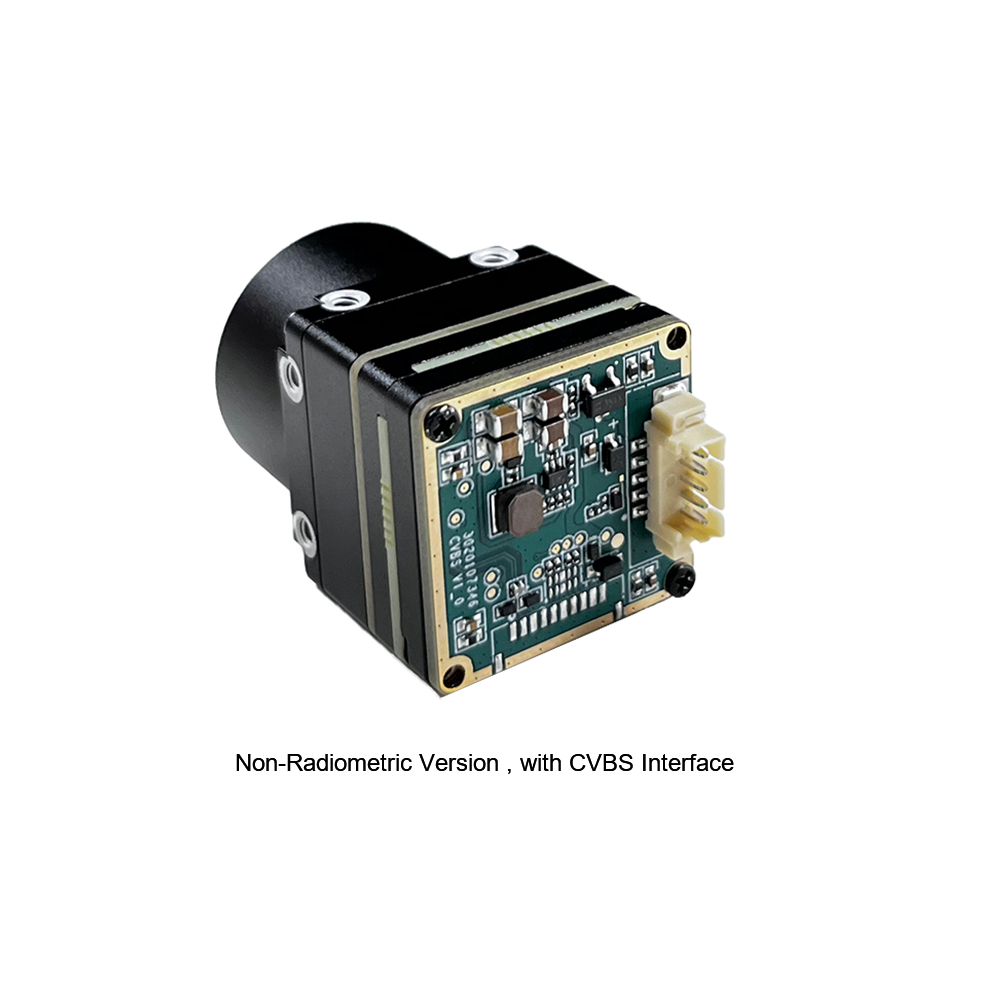

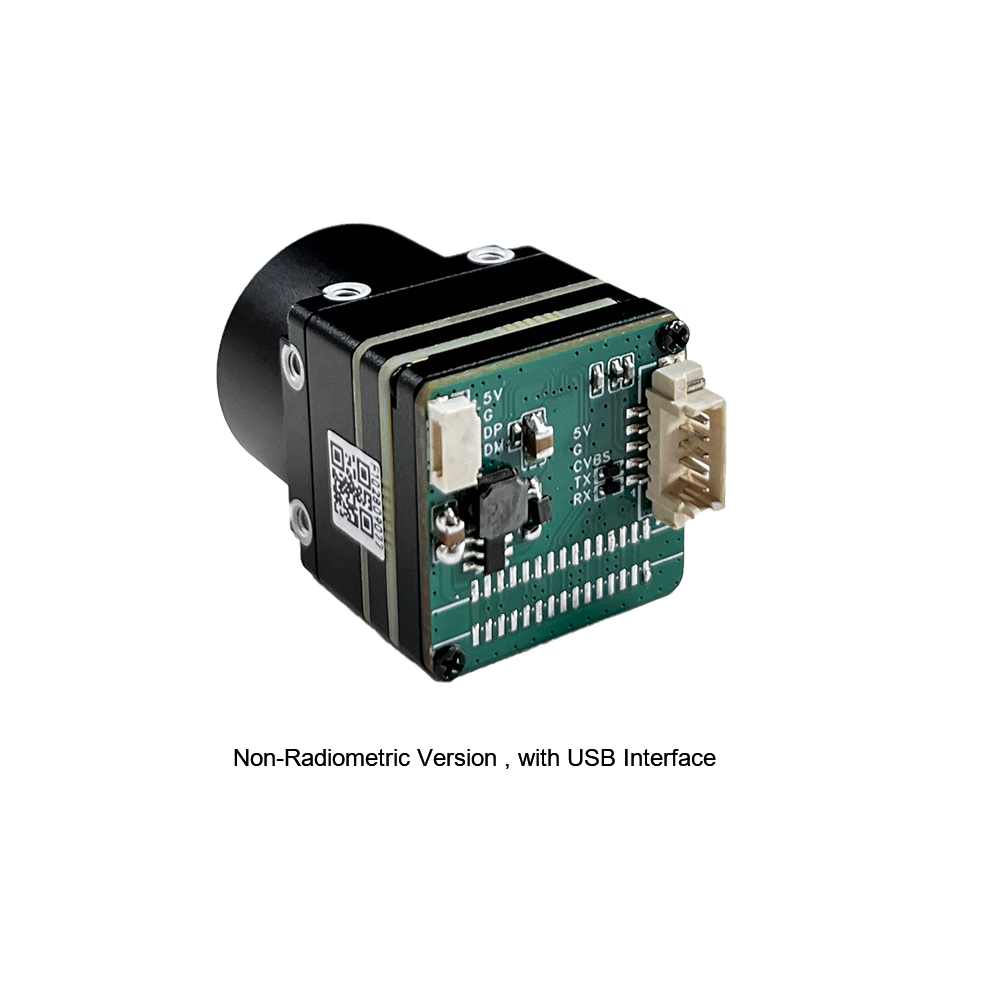

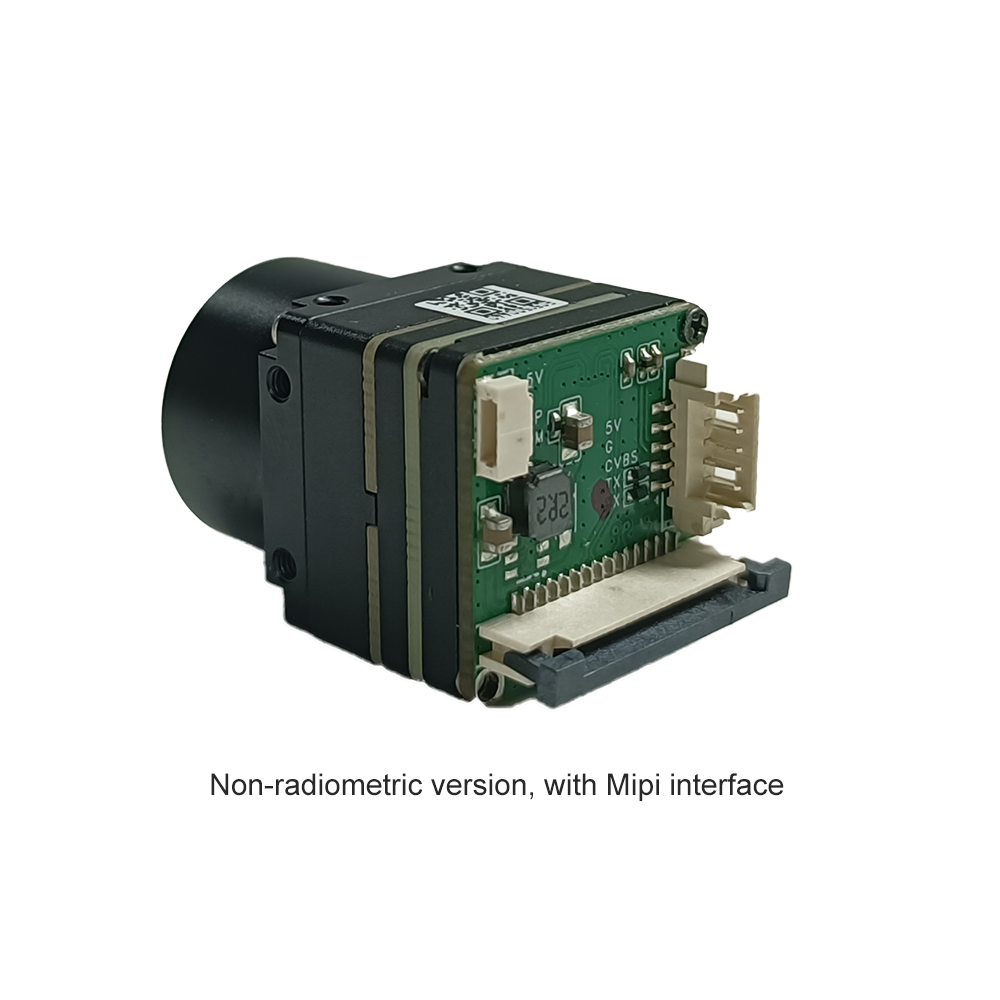

• Digital Video: USB、MIPI、BT.656

• Analog Video: CVBS、PAL、NTSC

• Serial Communication: UART、RS232、RS422

• Temp Measure Range: From -20℃ to +550℃

Clear Image & Accurate Radiometry

• lmage Processing: TECLESS algorithm/Nonuniformity correction/Digital filtering noise reduction/Digital detail enhancement

Various Interfaces for Easy Integration

1.3. Thermal Imaging Module Applications

Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods

Fire rescue: fire warning, fire helmet

Other specific applications: Drones , power detection and thermal imaging guided missile

Thermal Camera Module for Raspberry Pi/Orange Pi

Thermal Mines Detection

Product Paramenters

Model：Mini640-4 Mini640-7 Mini640-9 Mini640-13 Mini640-15 Mini640-18 Mini640-25 Mini640-35 Mini640-50 Mini640-60 Mini640-75

Resolution：640*512

Detector Type：Vox

Detector Frame：25Hz(Radiometric )/60Hz(Non-Radiometric )

Pixel Spacing：12μm

Response Wave Band：8～14μm

NETD：≤50mK@25℃,F#1.0（≤40mK optional）

Lens

Focus：4mm 7mm 9mm 13mm 15mm 18mm 25mm 35mm 50mm 60mm 75mm

FOV：100°*82° 80°*62° 48.7°*38.6° 31.9°*25.7° 29.3°*23.5° 24.2°*19.5° 17.5°*14° 12.5°*10° 8.8°*7° 7.3°*5.9° 5.9°*4.7°

F-number：1

Image Adjustment

Polarity：White heat/Black heat

Module Power Supply

Supply Voltage：1.8V、3.3V、5V

Typical Dissipation：@25℃ ＜0.5W

Video output

Digital Video：USB、MIPI

Analog Video：CVBS or PAL or NTSC

Serial Communication：UART、RS232、RS422

Module Physical Properties:(Without Lenses and Flanges)

Weight：＜20g(without lens)

Size：21x21mm(without lens)

Temperature Measurement

Temp Measure Rang：From -20℃ to +550℃

Environmental Adaptability

Work Temperature：From -40℃ to +80℃

Storage Temperature：From -50℃ to +85℃ Humidity 5%-95%, no condensation
