Weight：0.5 kg

Shipping weight of one thermal imaging camera module：0.5 kg

Net Weight (without lens)：about 6.4g

Lens：4mm, 7mm, 9mm, 13mm, 15mm, 18mm, 25mm, 35mm

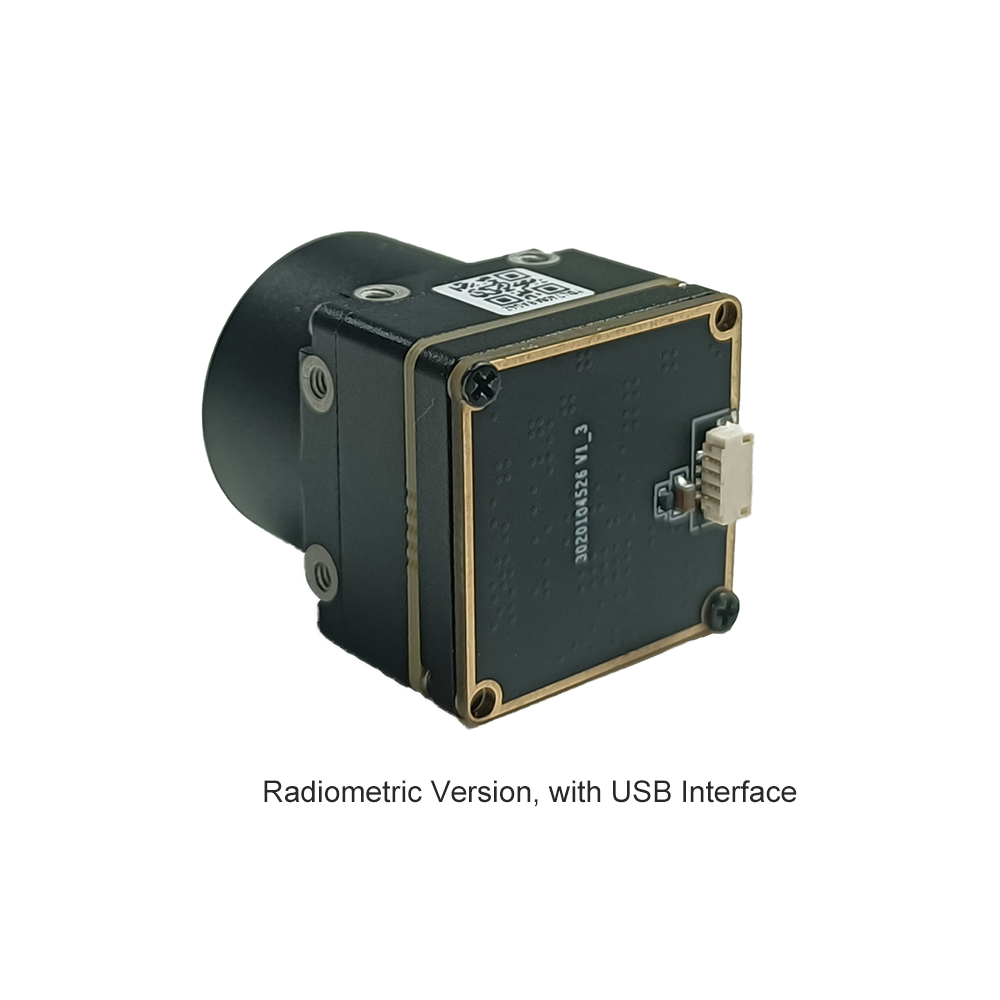

Function：Radiometric Version(25Hz), Non-radiometric version (60Hz)

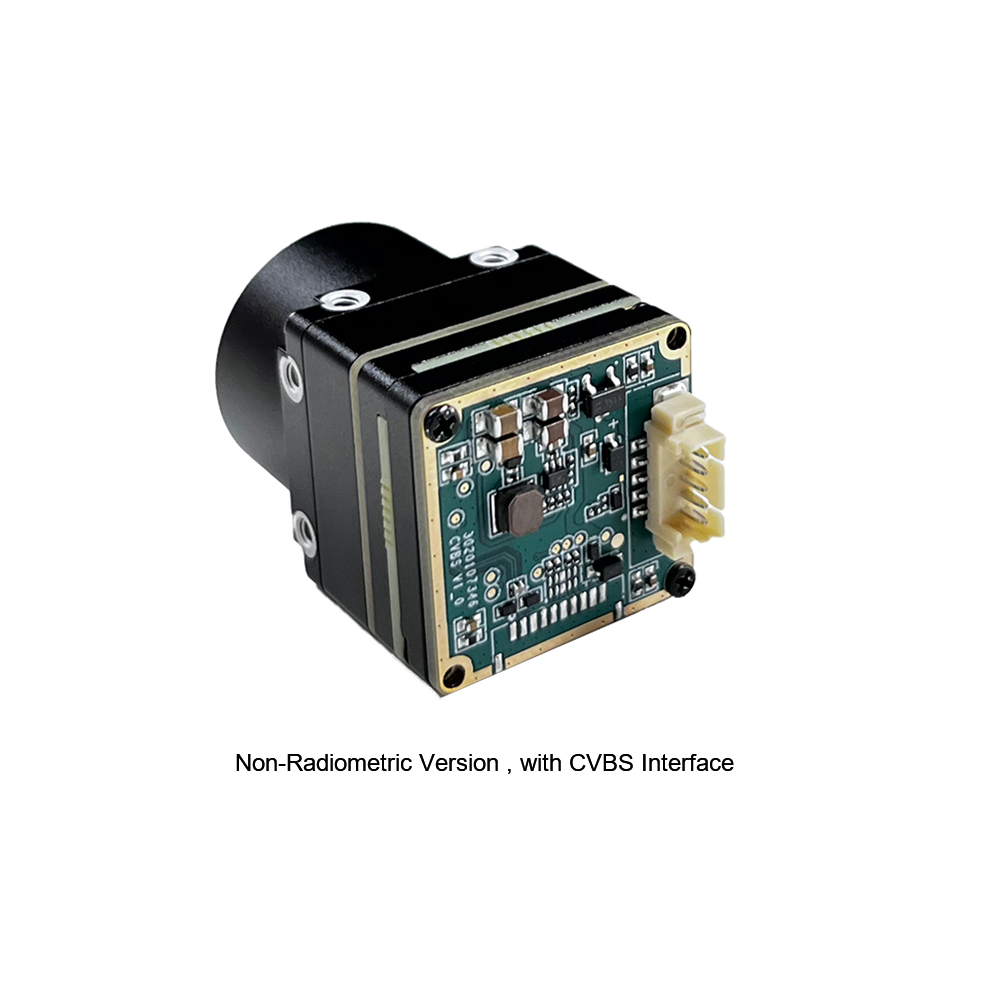

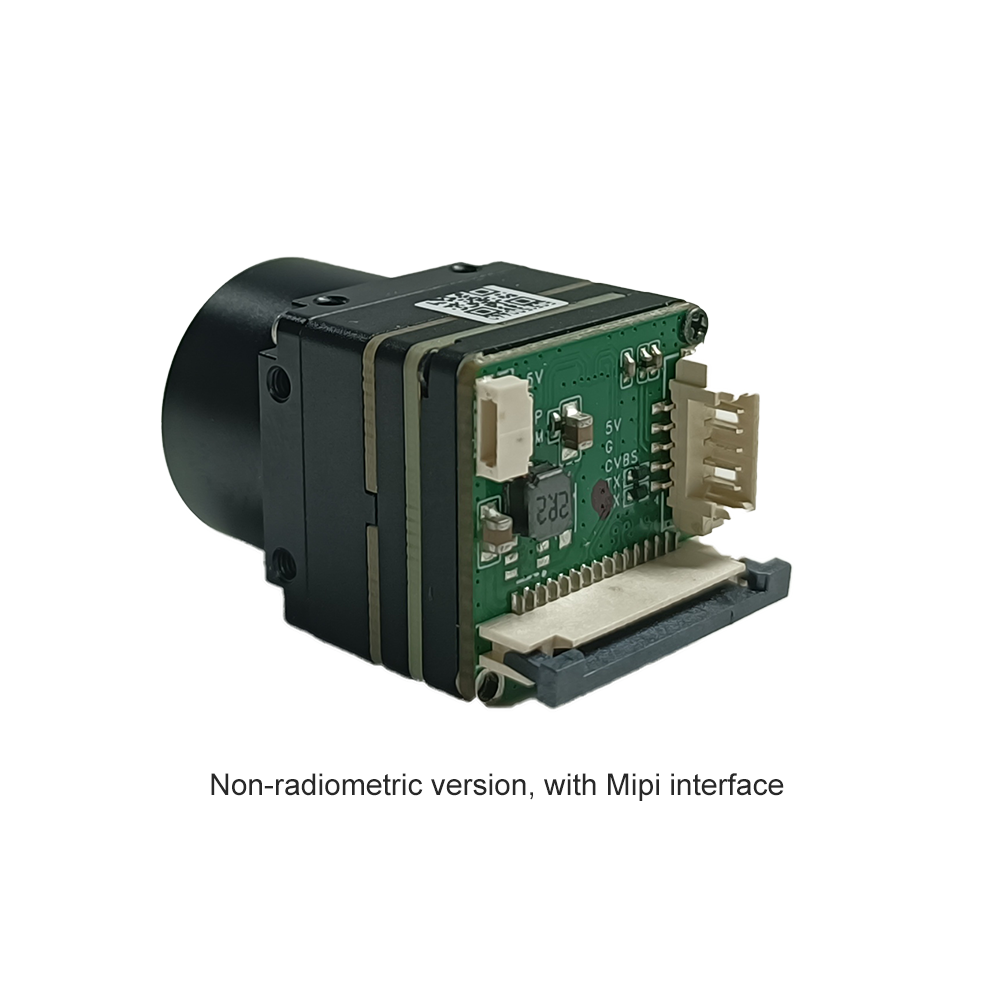

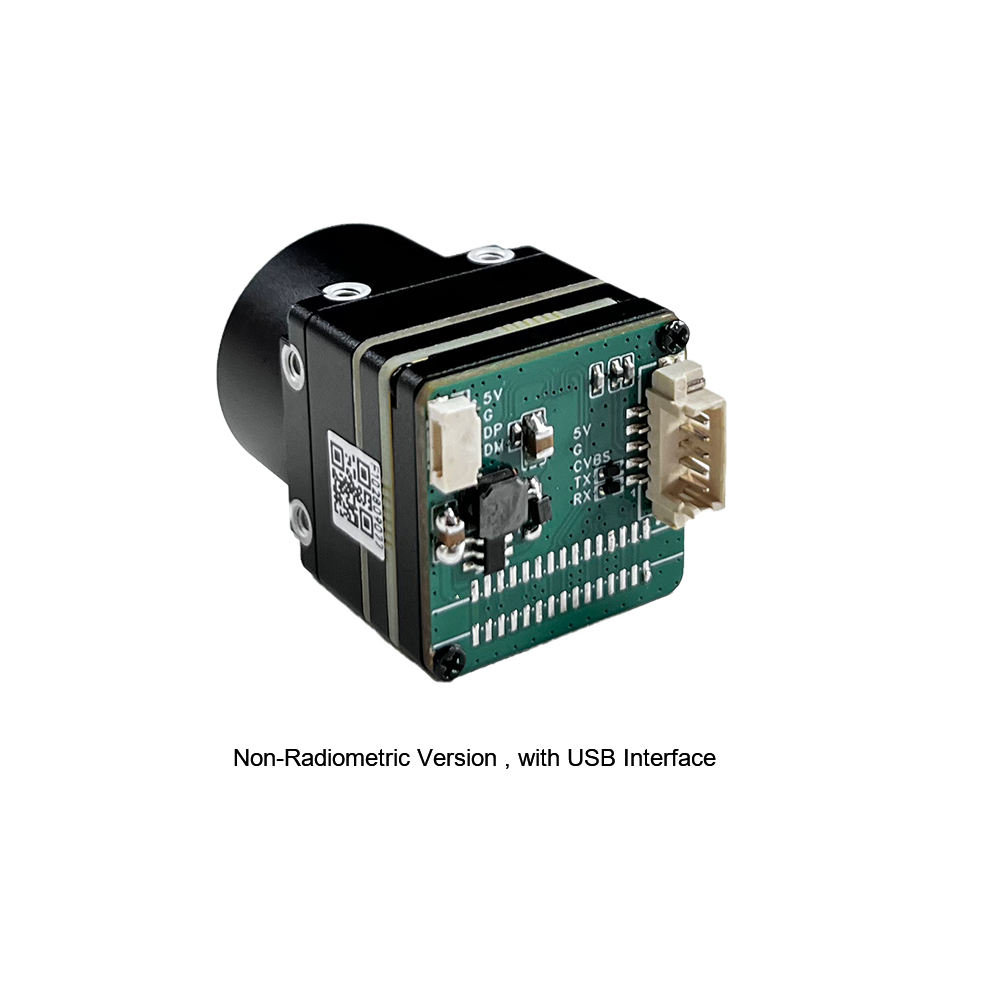

Interface：CVBS, USB, MIPI

Note：Radiometric Version only has 4/7/9mm Lens

1.Product Introduction

1.1.  Product description

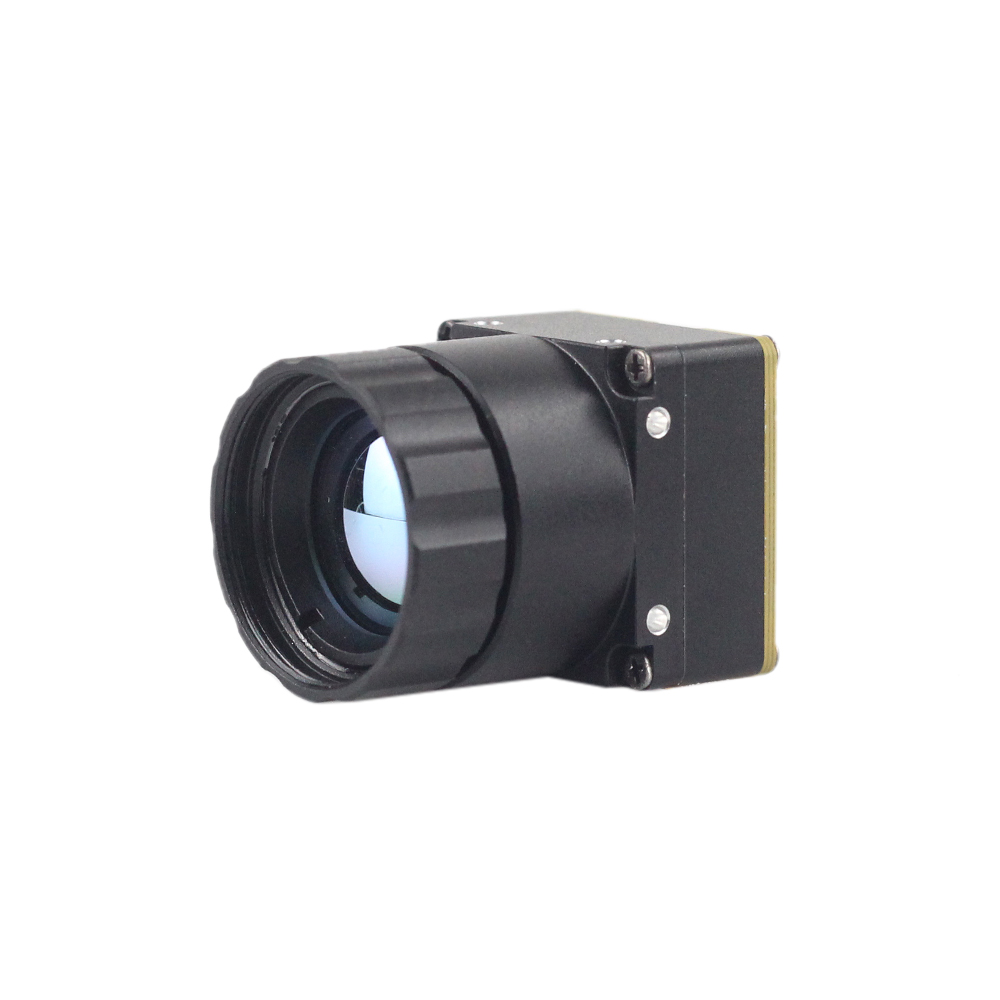

Product description of Mini 256 Uncooled LWIR thermal Camera Module:

Main Features:

- Thermal Image Frame Rate:25Hz/60Hz

- Output: CVBS or PAL or NTSC、USB、MIPI

- Easy Integration & Plug-in

- Clear Image Quality & Details

- Customizable Temperature Range

- Strong Environmental Adaptability

1.2.Product Parameter:

Resolution: 256 * 192

Pixel size: 12 μ m

Response band: 8-14 μ m

NETD：≤ 50mK@25 ℃,F#1.0

Power consumption:<0.27W<0.5W<0.55W

Power supply range: 1.8V, 3.3V, 5V

Data interface: DVP/USB/BT.656

Control interface: I2C

Temperature measurement range: -20 ℃~+150 ℃, 0 ℃~+450 ℃

Temperature measurement accuracy: ± 2 ℃ or ± 2% of reading

Temperature measurement method: point, line, box

Weight: ＜8g(without lens)

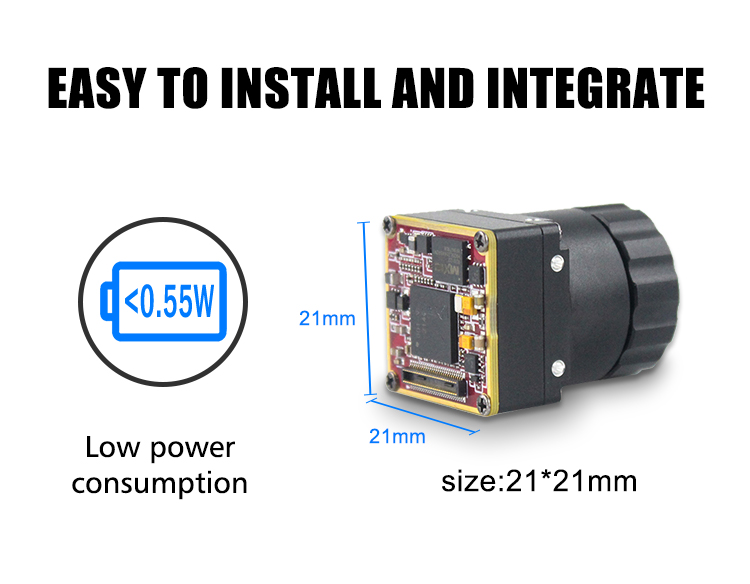

Size: 21mm*21mm

1.3. Applications

Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods

Fire rescue: fire warning, fire helmet

Other specific applications: Drones , power detection ,Detecting Mines and thermal imaging guided missile.

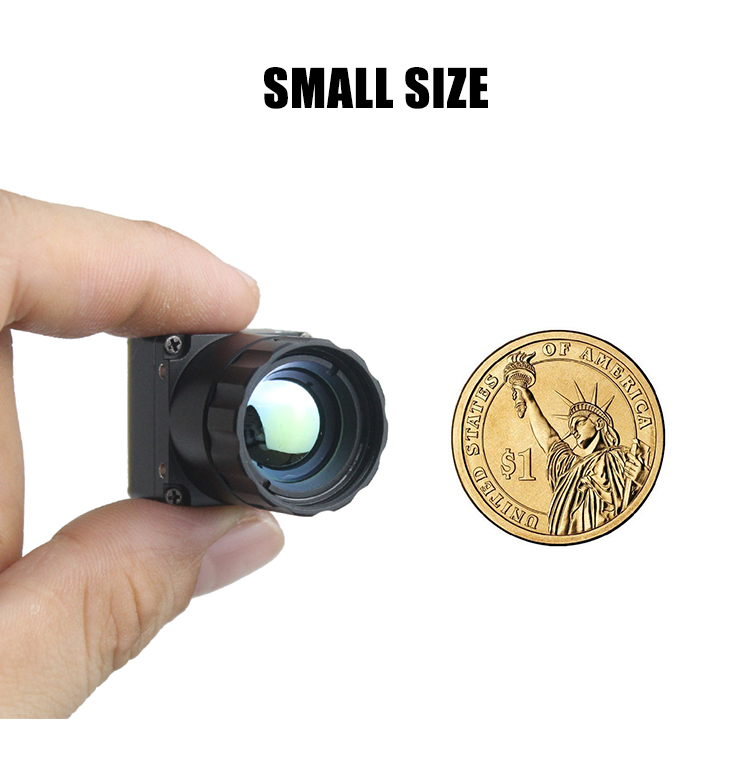

Mini adopts pixel spacing 12μm infrared detector. It features a compact size, lighter weight, and lower power consumption.

The 256*192 series of infrared modules achieve a size of 21mm*21mm, meeting the application requirements of SWaP3 (Weight and Power, Size, Performance, Price).

It is highly suitable for various devices such as small handheld imagers, outdoor sights, wearable devices, lightweight drones, robots, for many applications such as security and industrial temperature measurement

Product Paramenters

Model：Mini256-4 Mini256-7 Mini256-9 Mini256-13 Mini256-15 Mini256-18 Mini256-25 Mini256-35

Resolution 256*192

Detector Type Vox

Pixel Spacing 12μm

Response Wave Band 8～14μm

NETD ≤50mK@25℃,F#1.0（≤40mK optional）

Lens

Focus 4mm 7mm 9.1mm 13mm 15mm 18mm 25mm 35mm

Field of View 43.3°×32.8° 26.1°×19.6° 19.3°×14.5° 13.6°×10.2° 11.7°×8.8° 9.8°×7.3° 7.0°×5.3° 5.0°×3.8°

F-number 1

Image Adjustment

Polarity White heat/Black heat

Pseudo Color Available

Module Power Supply

Supply Voltage 1.8V、3.3V、5V

Typical Dissipation @25℃ ＜0.5W

Video output

Digital Video USB、MIPI

Analog Video CVBS or PAL or NTSC

Serial Communication UART、RS232、RS422

Module Physical Properties

Weight ＜8g(without lens）

Size 21×21mm (without lens）

Temperature Measurement

Temp Measure Rang From -20℃ to +550℃

Environmental Adaptability

Work Temperature From -40℃ to +80℃

Storage Temperature From -50℃ to +85℃

Humidity 5%-95%, no condensation
