Weight：0.5 kg

Shipping weight of one thermal imaging camera module：0.5 kg

1.Product Introduction

1.1.  Product description

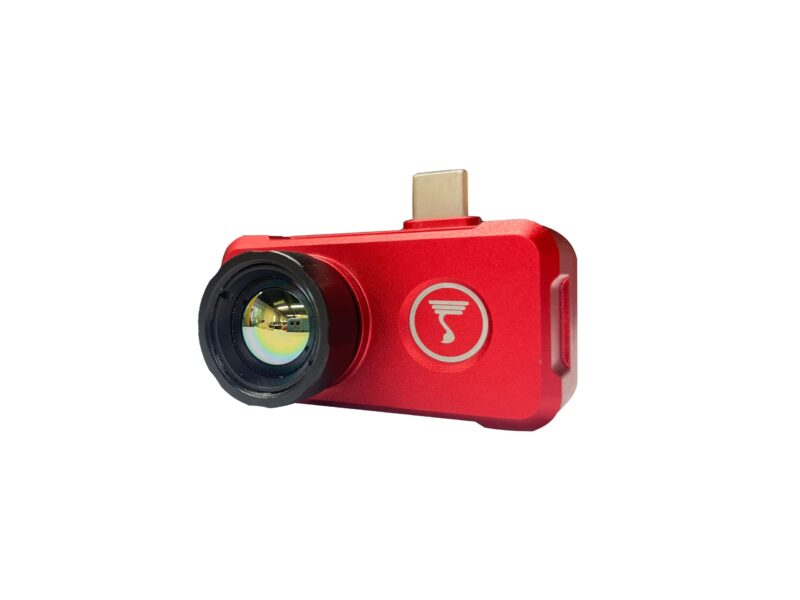

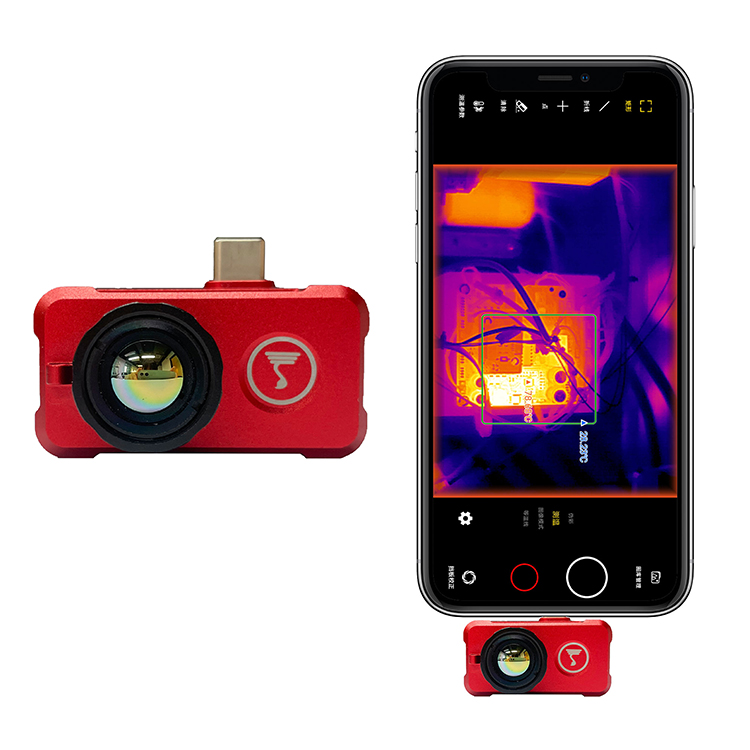

Product feature of 384x288 mini usb thermal camera for Android phone thermal imager for smartphone:

Detector resolution: 384X288

Pixel size: 17μm

NETD (Noise Isothermal Difference): ≤60mK@f#1.0

Response band: 8 ~ 14μm

Power interface: USB/Type-C

Frame rate: 25Hz

Lens focal length: 13mm

Focusing method: focus

Focus method: Manual

Aperture: F1.0

Field of view: 28. 8 ° × 21. 6 °

1.2. Characteristic

Temperature measurement range: -20℃ ~ 120℃ (Extended range: -20℃ ~ 400℃)

Temperature measurement accuracy: ±2℃ or ±2% (whichever is the maximum value)

Multimedia: Take photos (save in JPG, PNG, BMP), video (save in MP4)

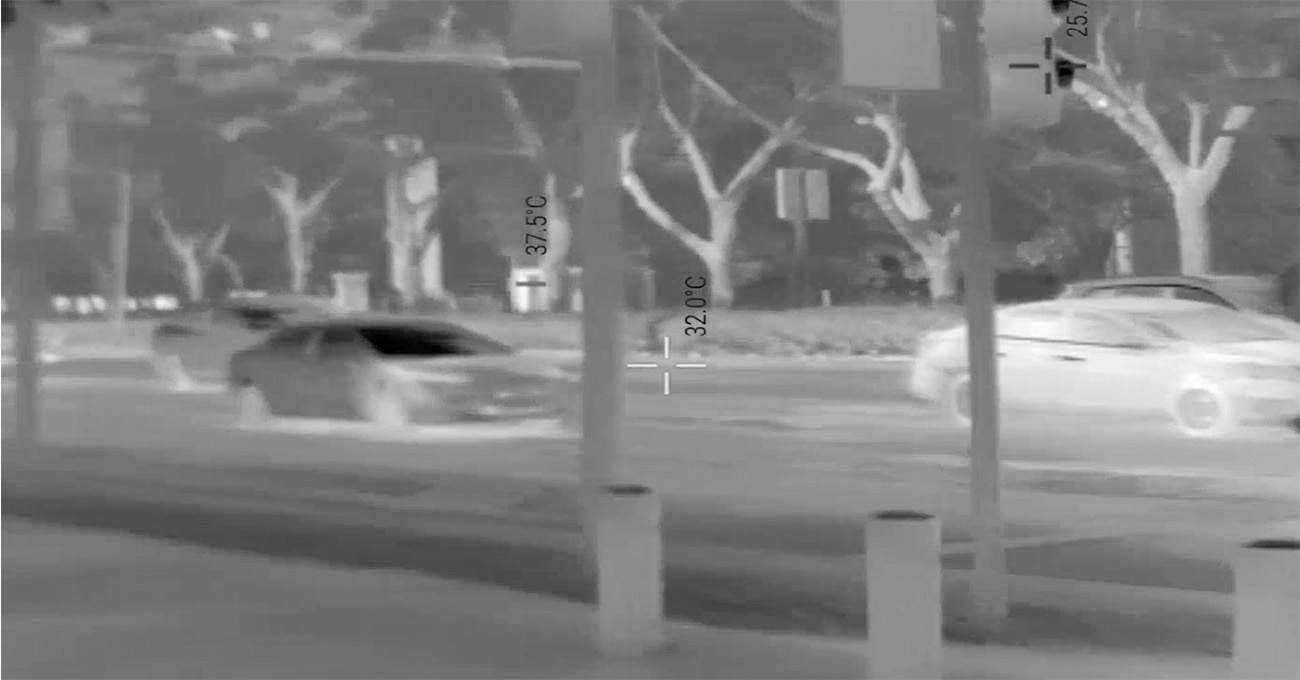

Color palette: Black hot, white hot, iron red, rainbow, iron gray and high contrast rainbow, a total of 6 false colors

Picture mode: Supports 3 picture modes: dual window, picture fusion, and picture-in-picture

Model：OS-Q3

Detector resolution 384×288

Pixel size 17μm

NETD (Noise Isothermal Difference) ≤60mK@f#1.0

response band 8 ~ 14μm

Thermal Imaging Frame rate 25Hz

lens focal length 13mm

Focusing method focus

Focus method Manual

aperture F1.0

field of view 28. 8 ° × 21. 6 °

Temperature measurement range -20℃ ~ 120℃ (Extended range: -20℃ ~ 400℃)

Temperature measurement accuracy ±2℃ or ±2% (whichever is the maximum value)

APP software function multimedia Take photos (save in JPG, PNG, BMP), video (save in MP4)

color palette Black hot, white hot, iron red, rainbow, iron gray and high contrast rainbow, a total of 6 false colors

Picture mode Supports 3 picture modes: dual window, picture fusion, and picture-in-picture

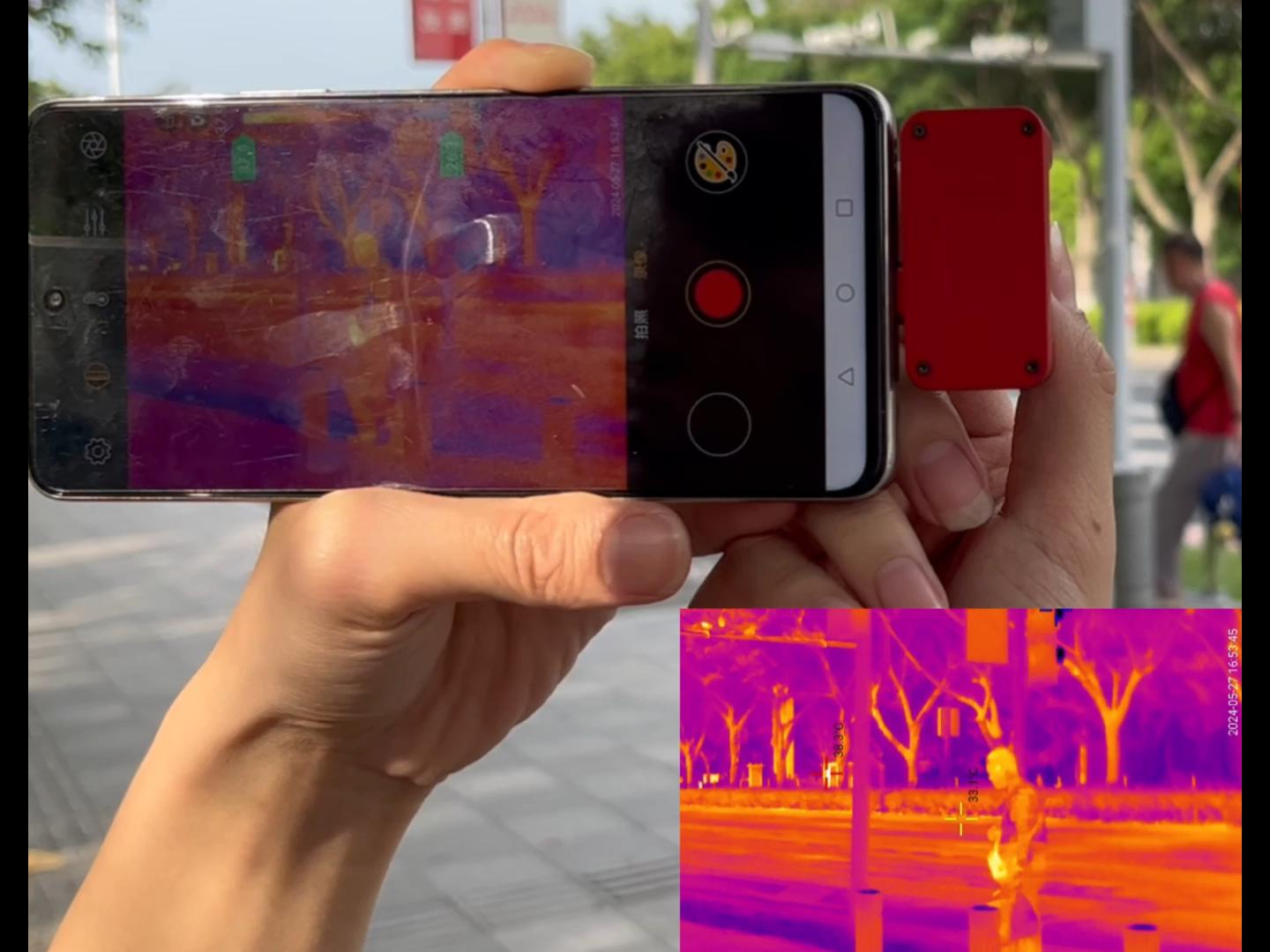

support system Android 6.0 and above; supports Armerbi-v7a architecture; supports OTG function

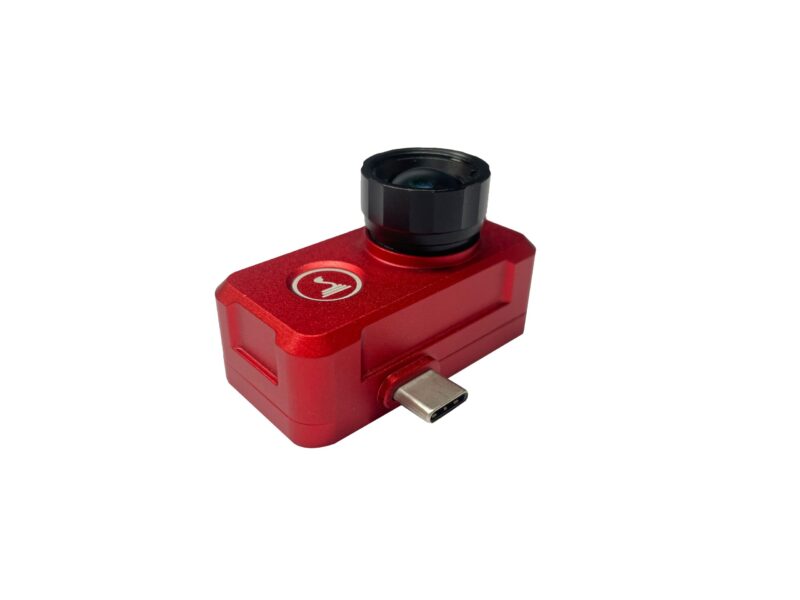

Power interface Type-C

Operating temperature -15℃ ~ 60℃

Storage temperature -55℃ ~ 120℃

General specifications Power consumption ≤0.38W/380mW

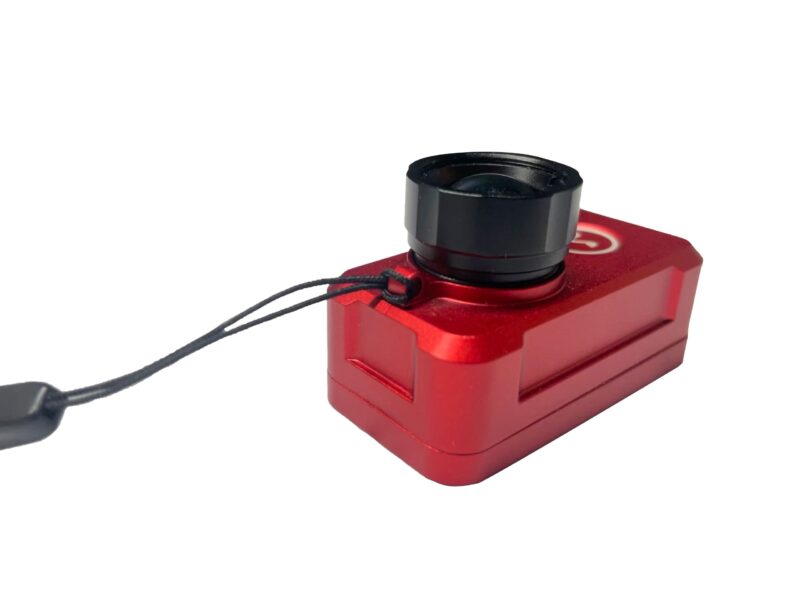

Material Aluminum alloy

Protection level IP55

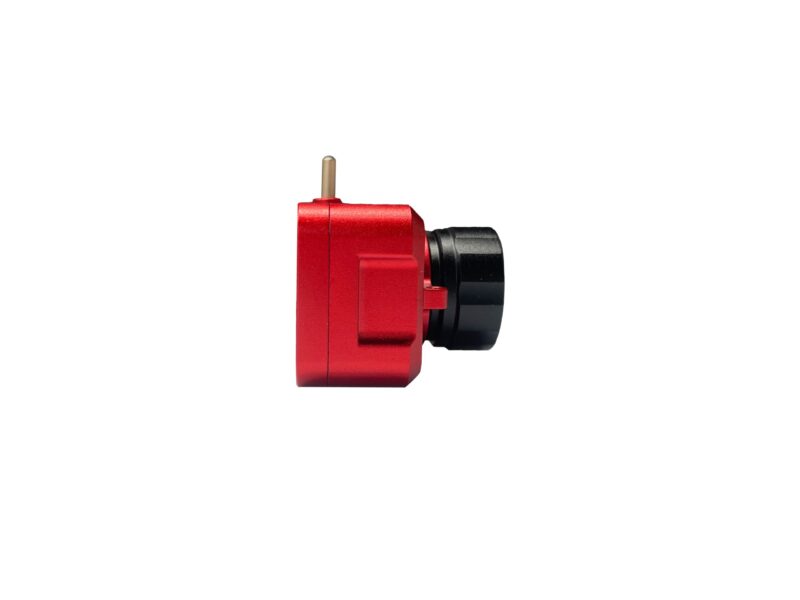

size 50mm(L)×28.5mm(W)×34.5mm(H)

weight ≤ 4 2g
