Weight：0.5 kg

Shipping weight of one thermal imaging camera module：0.5 kg

Lens：4mm wide-angle lens, 9mm, 13mm, 19mm, 35mm

Network Interfaces：CVBS,RJ45,RS-485, IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP

1.Product Introduction

1.1.  Product description

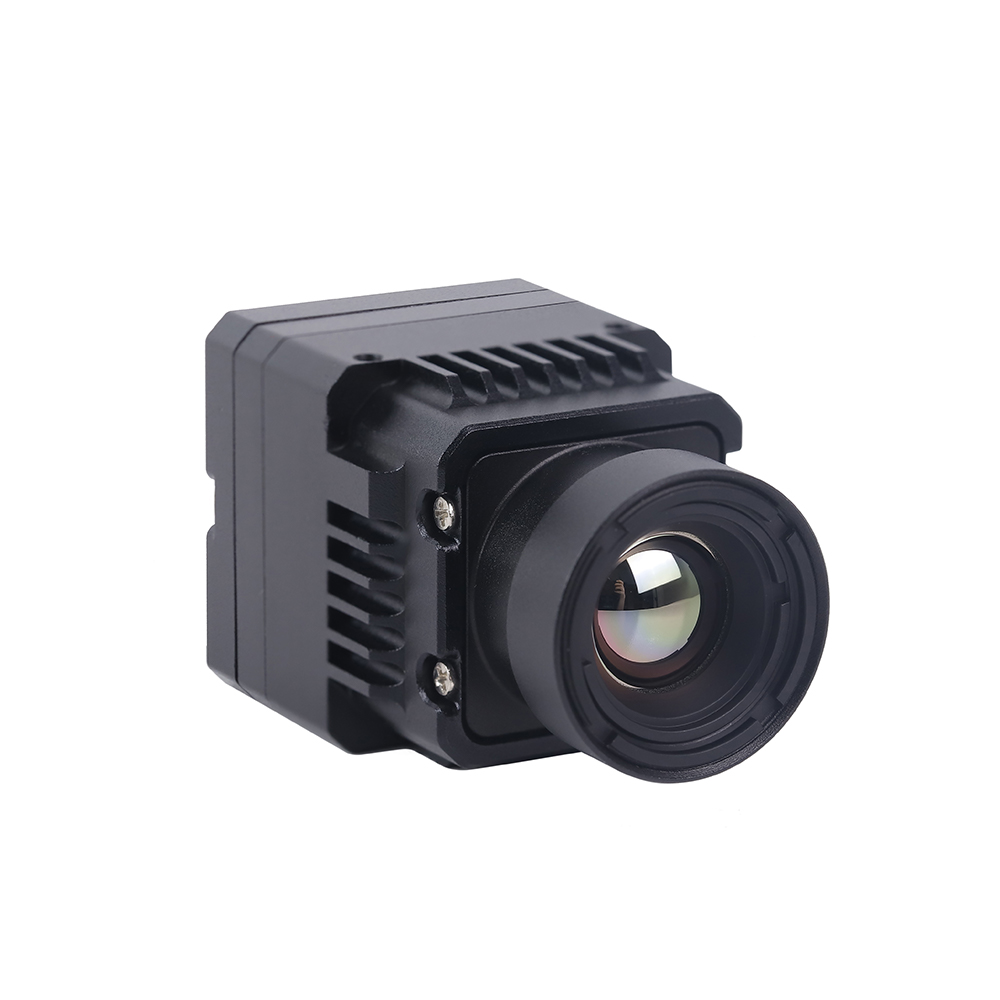

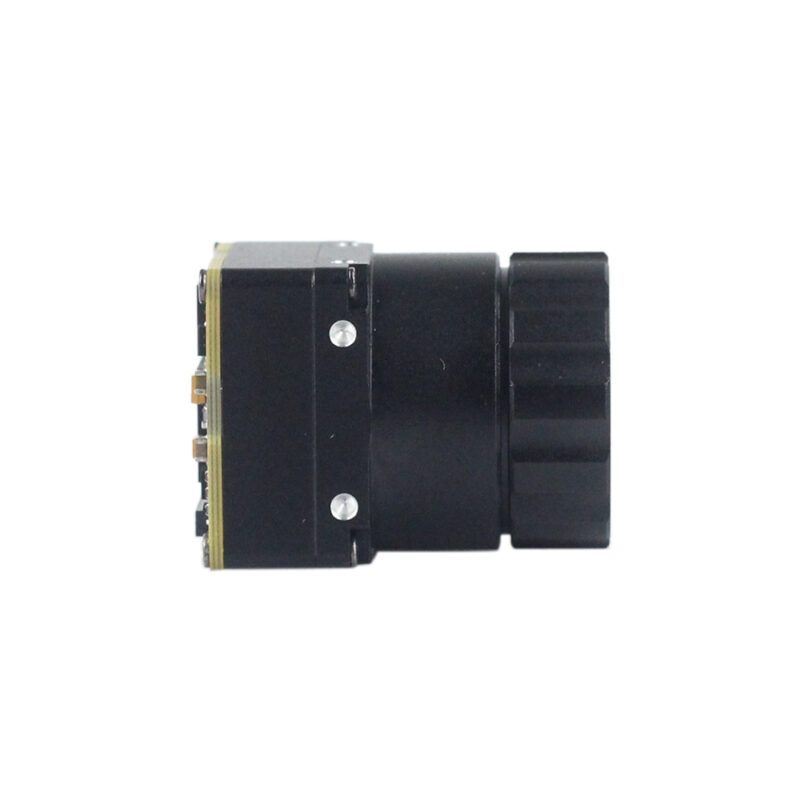

Product Parameter of 640*512 ASIC Thermal Sensor Camera Module:

Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector

Resolution: 640*512

Detector Frame: 30/60Hz

Pixel Spacing: 12um

Response Wave Band: 8~14um

NETD: ≤50mK(@25°C,F#1.0

Lens Type: 9/13/19/35mm

Polarity/false color: White Hot/Black Hot/Fusion/Iron Red/Rainbow/Autumn Gold/Noon Sun/Amber/Jade/Sunset/Fire and Ice/Oil Painting/Pomegranate/Jadeite/Spring/Summer/Autumn/Winter (18 Pseudo - color Modes in Total)

Weight: ≤50g

Dimensions: 45mm(L)*28mm(W)*28mm(H)

1.2. Characteristic

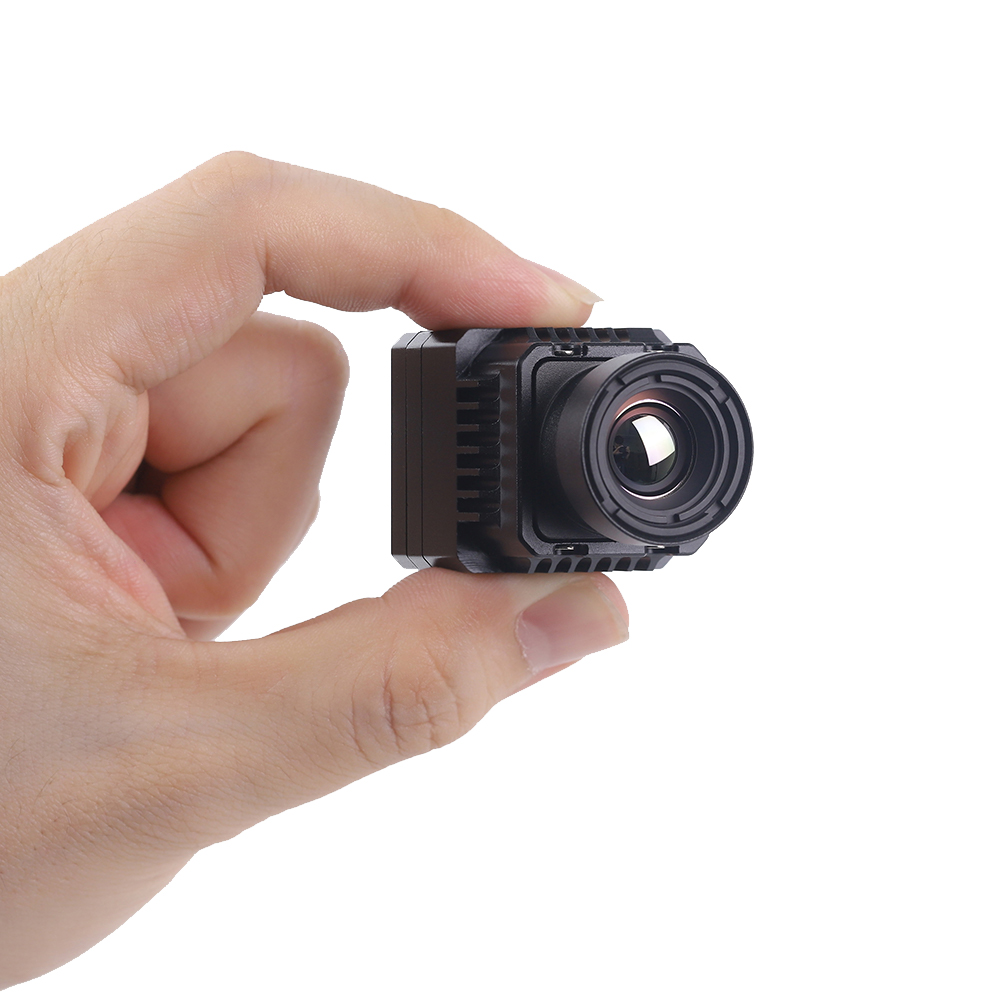

Compact & Lightweight Design

• Network Protocols: IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP

• Video Compression Standards: H.265/H.264/MJPEG

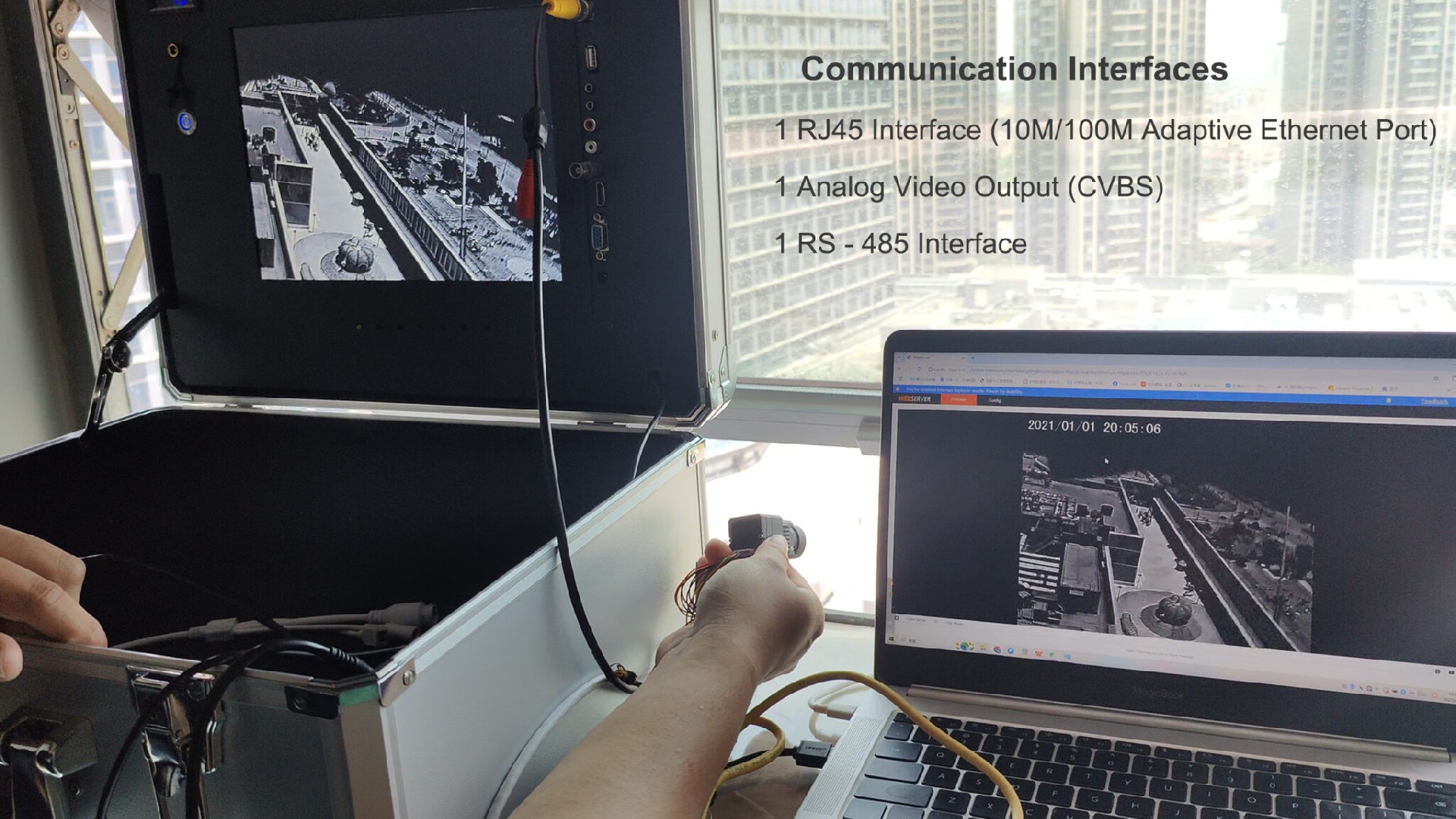

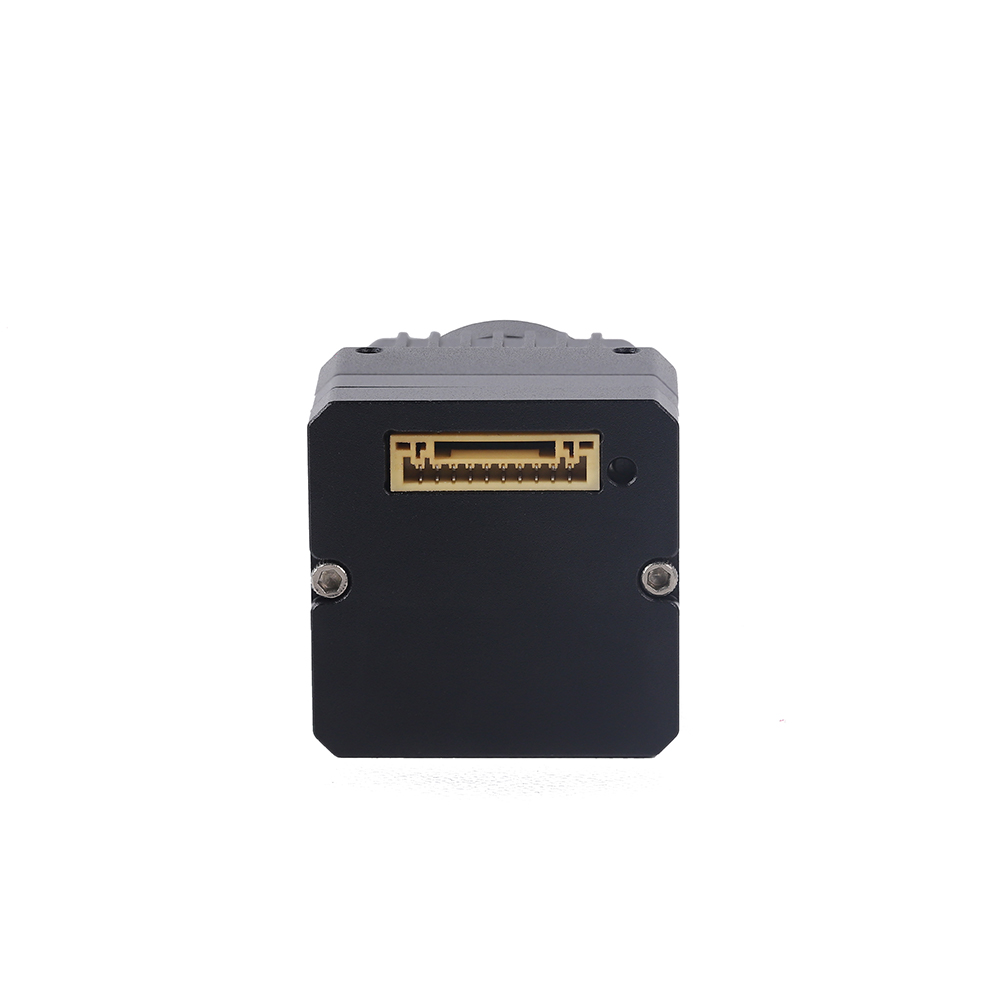

• Communication interface:

1 RJ45 Interface (10M/100M Adaptive Ethernet Port)

1 RS - 485 Interface

1 Analog Video Output (CVBS)

• Operating temperature: -20°C～+60°C

Power Supply: DC 12V

Power Consumption: ≤1.6W

Note 1: The above parameters are all measured under laboratory conditions. The actual specifications and test methods are subject to the test report.

1.3. Thermal Imaging Module Applications

Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods

Fire rescue: fire warning, fire helmet

Other specific applications: ASIC Thermal Camera module for Drones , power detection and thermal imaging guided missile

Thermal Mines Detection

Product Paramenters

Model LTC609 LTC613 LTC619 LTC635

Thermal Imaging Parameters Detector Type Vanadium Oxide Uncooled Infrared Focal Plane Detector

Infrared Resolution 640×512

Pixel Pitch 12μm

Operating Wavelength Band 8 - 14μm

Lens Focal Length 9mm 13mm 19mm 35mm

Lens Field of View (FOV) 51.4° × 41.1° 32.9° × 26.6° 23.8° × 19° 12° × 10°

Noise Equivalent Temperature Difference (NETD) ≤50mK(@25°C,F#1.0)

Color Palettes White Hot/Black Hot/Fusion/Iron Red/Rainbow/Autumn Gold/Noon Sun/Amber/Jade/Sunset/Fire and Ice/Oil Painting/Pomegranate/Jadeite/Spring/Summer/Autumn/Winter (18 Pseudo - color Modes in Total)

Temperature Display Real - time Maximum, Minimum, and Average Temperatures

Temperature Measurement Range -20°C～+550°C

Temperature Measurement Accuracy ±2°C or ±2% of the Reading (Take the maximum value)

Network Interfaces Network Protocols IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP

Video Compression Standards H.265/H.264/MJPEG

Communication Interfaces 1 RJ45 Interface (10M/100M Adaptive Ethernet Port), 1 RS - 485 Interface, 1 Analog Video Output (CVBS) RJ45 interface (10M/100M adaptive Ethernet port),1 analog video output (cvbs)

Physical Specifications Operating Temperature -20°C～+60°C

Ambient Humidity 5%～95%, No Condensation

Protection Level IP54

Power Supply DC 12V

Power Consumption ≤1.6W

Housing Material Aluminum Alloy

Core Dimensions 45mm(L)×28mm(W)×28mm(H) 120mm(L)×38mm(W)×38mm(H)

Weight ≤50g ≤200g
