Weight：0.5 kg

Shipping weight of one thermal imaging camera module：0.5 kg

Net Weight (without lens)：about 6.4g

Lens：4mm, 7mm, 9mm, 13mm, 15mm, 18mm, 25mm, 35mm, 50mm, 60mm, 75mm

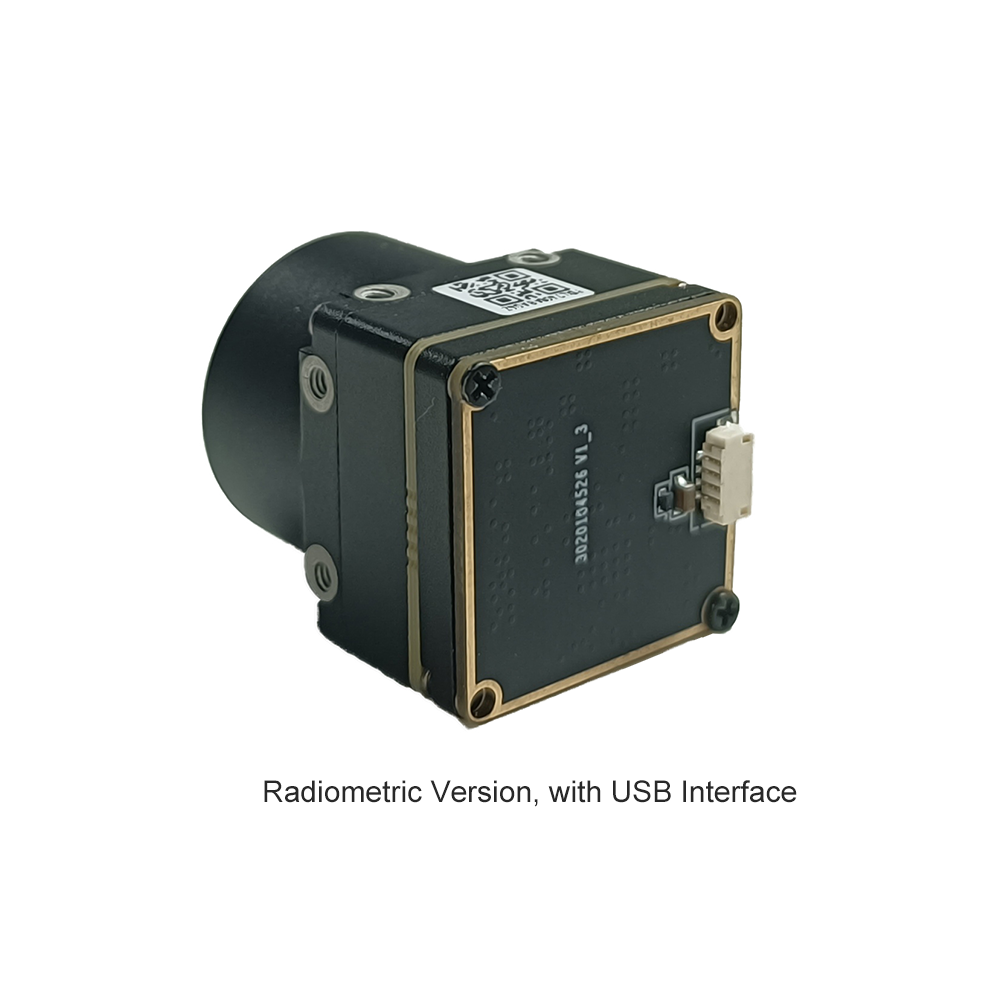

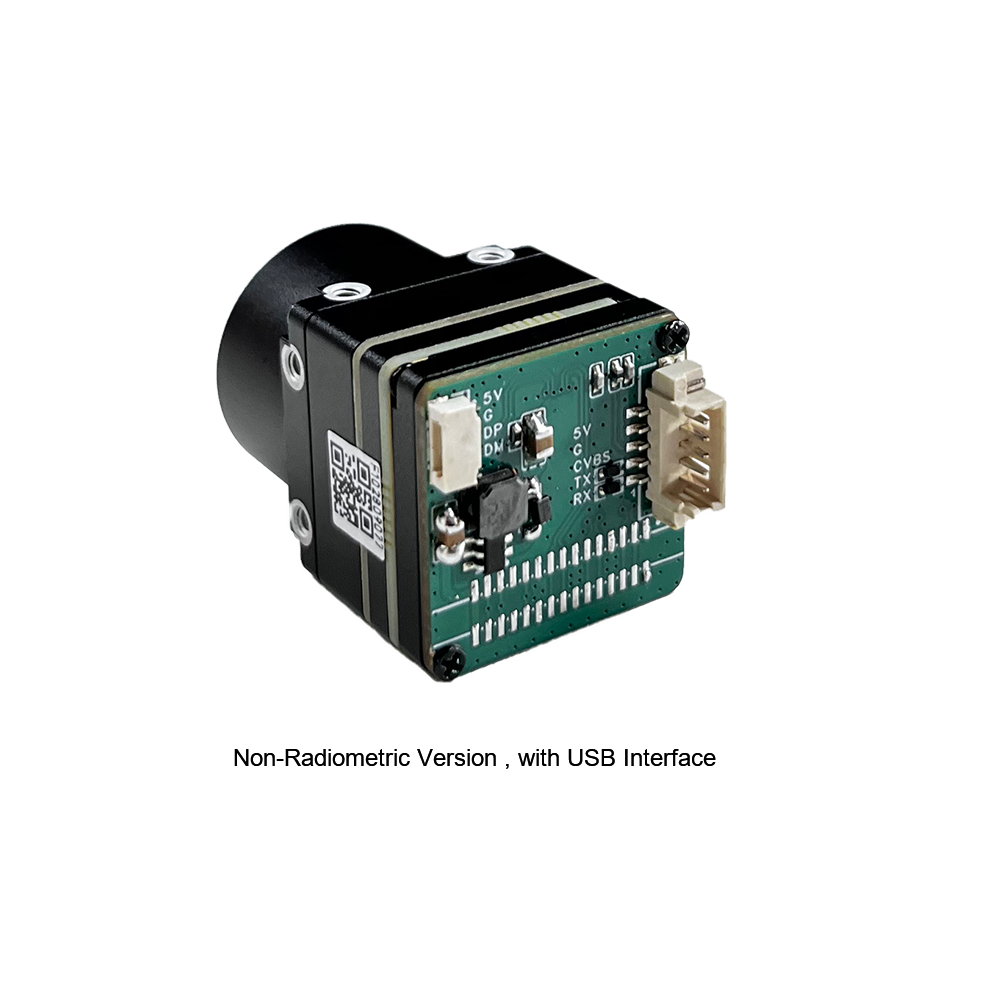

Function：Radiometric Version(25Hz), Non-radiometric version (60Hz)

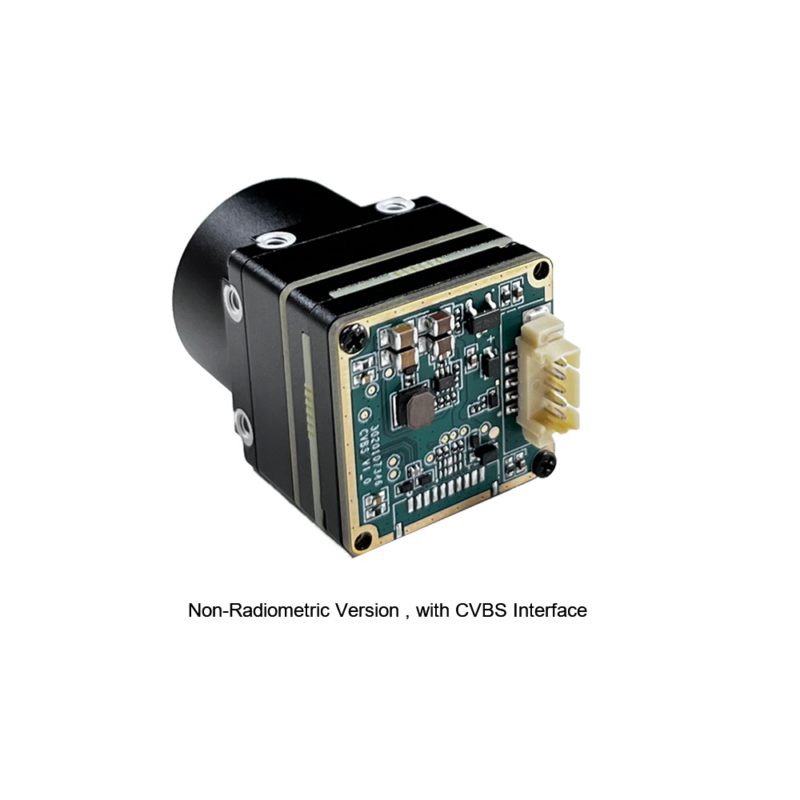

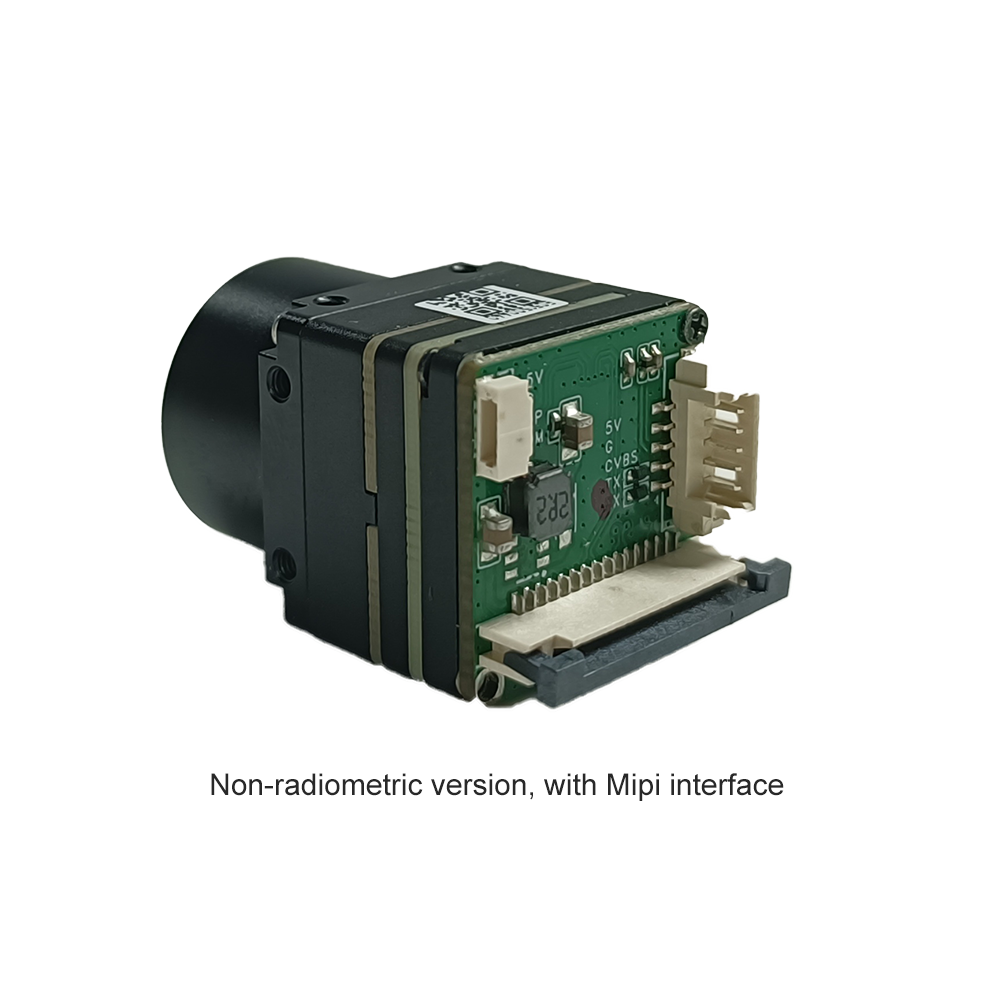

Interface：CVBS, USB, MIPI

Note：Radiometric Version only has 4/7/9/13mm Lens

1.Product Introduction

1.1.  Product description

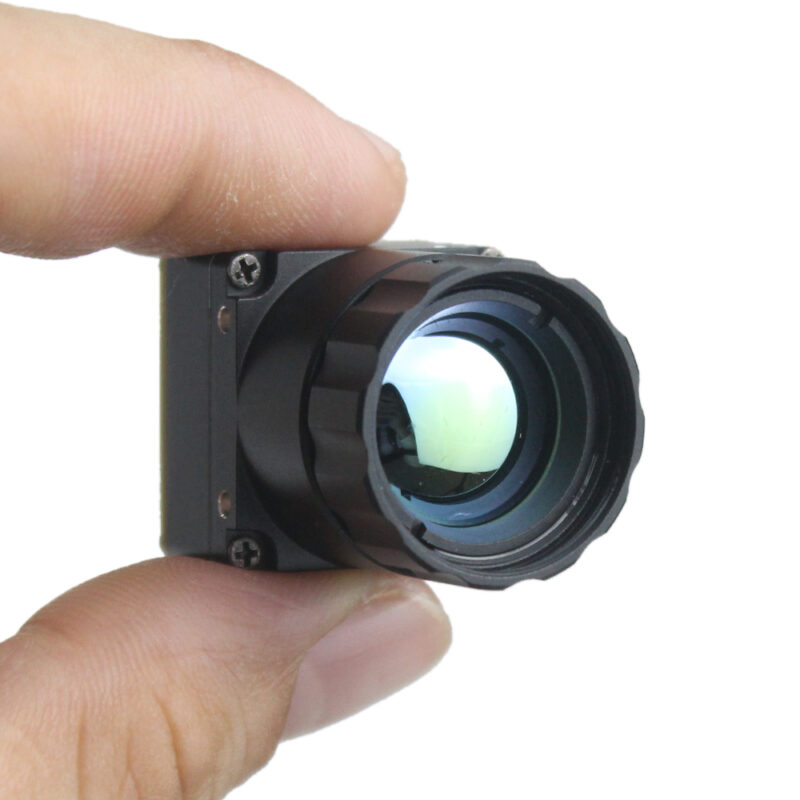

Product Features of Mini 384 Uncooled LWIR thermal Camera Module:

Ultra small size, ultra-light weight, ultra-low power consumption.

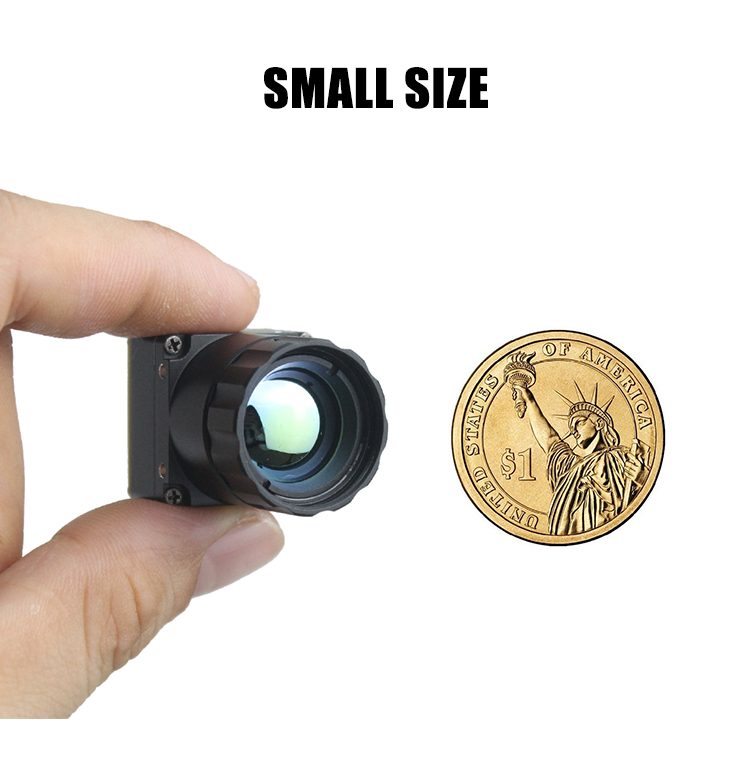

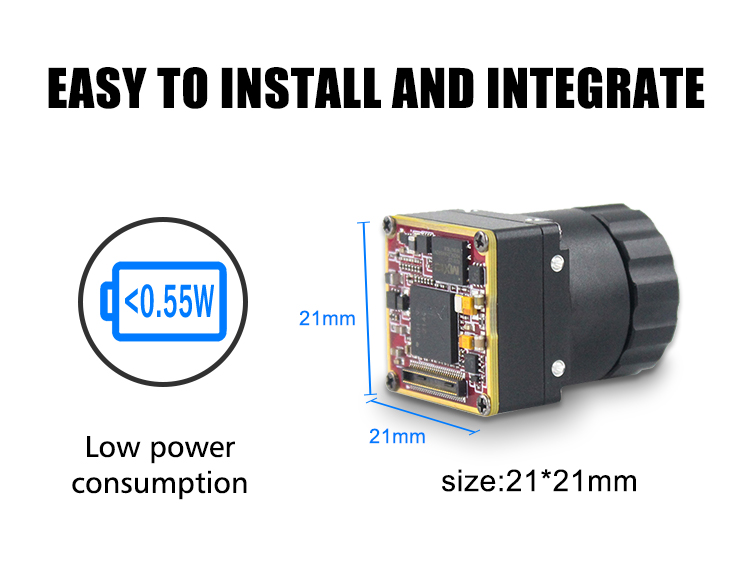

Ultra small volume (21 * 21mm) with a regular appearance, the optical center coincides with the geometric center, and the size of a coin makes it easier to integrate.

Ultra light weight (<10g) suitable for light unmanned aerial vehicles, small handheld observation equipment, and machine vision equipment.

Ultra low power consumption (full frame rate 50Hz power consumption<0.55W) eliminates the need for system cooling, bringing great technical advantages.

1.2.Product Parameter:

Resolution: 384 * 288

Pixel size: 12 μ m

Response band: 8-14 μ m

NETD：≤ 50mK@25 ℃,F#1.0

Power consumption:<0.27W<0.5W<0.55W

Power supply range: 1.8V, 3.3V, 5V

Data interface: DVP/USB/BT.656

Control interface: I2C

Temperature measurement range: -20 ℃~+150 ℃, 0 ℃~+450 ℃

Temperature measurement accuracy: ± 2 ℃ or ± 2% of reading

Temperature measurement method: point, line, box

Weight: ＜8g(without lens)

Size: 21mm*21mm

1.3. Applications

Security inspection: industrial monitoring, perimeter scanning, inspection robots, optoelectronic pods

Fire rescue: fire warning, fire helmet

Other specific applications: Drones , power detection and thermal imaging guided missile

Mines Detection

1.4.Micro infrared thermal imaging temperature measurement movement

The MINI series infrared thermal imaging temperature measurement module is a high-precision, small-sized, and universal online temperature measurement infrared thermal imager. It uses high-quality detectors, high resolution, stable performance, and powerful functions. It is equipped with multiple interfaces, making it a preferred product in application fields such as machine vision, safety inspection, intelligent manufacturing, equipment maintenance, robot drone airborne, and so on.

Rich and flexible interfaces for easy integration

a) The module form supports DVP parallel digital video output, SPI video transmission, and I2C and UART communication interfaces;

b) Support digital video formats such as RAW14, YUV, Y8, BT.656, LVCMOS, etc;

c) Support simultaneous output of image data and temperature data;

d) Internally integrated MCU, providing secondary development SDK.

With its many advantages, the MINI series infrared thermal imaging modules will shine in multiple fields, especially in application scenarios with strict requirements for product size, weight, and power consumption, such as handheld devices, wearable devices, light drones, security monitoring, etc.

Product Paramenters

Model Mini384-4 Mini384-7 Mini384-9 Mini384-13 Mini384-15 Mini384-18 Mini384-25 Mini384-35 Mini384-50 Mini384-60 Mini384-75

Resolution 384×288

Detector Type Vox

Pixel Spacing 12μm

Response Wave Band 8～14μm

NETD ≤50mK@25℃,F#1.0（≤40mK optional）

Lens

Focus 4mm 7mm 9mm 13mm 15mm 18mm 25mm 35mm 50mm 60mm 75mm

Field of View 65°×50° 39.4°×29.4° 29.2°×21.7° 19.6°×14.7° 17.5°×13.1° 14.7°×11.0° 10.5°×7.9° 7.5°×5.7° 5.3°×4.0° / /

F-number 1

Image Adjustment

Polarity White heat/Black heat

Module Power Supply

Supply Voltage 1.8V、3.3V、5V

Typical Dissipation @25℃ ＜0.5W

Video output

Digital Video USB、MIPI

Analog Video CVBS or PAL or NTSC

Serial Communication UART、RS232、RS422

Module Physical Properties

Weight ＜8g(without lens）

Size 21×21mm (without lens）

Temperature Measurement

Temp Measure Rang From -20℃ to +550℃

Environmental Adaptability

Work Temperature From -40℃ to +80℃

Storage Temperature From -50℃ to +85℃

Humidity 5%-95%, no condensation
